Carbon manganese phosphorus silicon

1% -. 22% typical. 30 – 1.00% 0.030% maximum 1.0%

outline

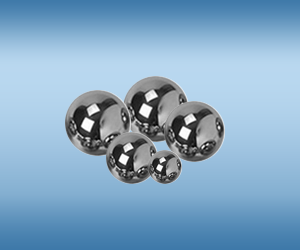

Carbon steel ball is an economic substitute for fully hardened precision ball. They provide reliable performance for cheaper anti-friction bearings, steering columns, casters, conveyor belts and trolleys, roller skates, toys and drawer slides. Carbon steel balls are also specified for vibration finishing, ball stoppers and aerosol cans that require ingredient mixing.

Material properties

High hardness and excellent wear resistance. Made of the highest quality carbon steel.

hardness

The surface of carbon steel ball is hardened to the lowest Rockwell C 60 (measured in parallel plane) to provide strength and long life.

Case depth

The steel ball hardened to these surface depths

Minimum case depth of ball diameter

1/16” .015”

3/32” .020”

⏵ "to 5/32" 0.25 "

3/16” .030”

7/32” .035”

¼  To 11/32 ". 045"

⏵ to 13/32 ". 055"

7/16 to 15/32 ". 065"

½  To 17/32 ". 070"

9/16 to 11/16 ". 075"

¾  To 1 ". 080"

size

1/32 inch (1 mm) to 2 inch (50.8 mm)

Grade

Hartford Technologies carbon steel balls are ABMA grade 100 to 1000.

Optional Finishes

zinc

nickel

Chrome alloy

phosphate

Black oxide

Colored finish
